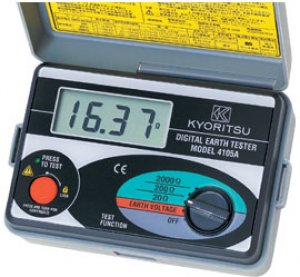

Kyoritsu 4105A

Category: Earth Testers
Dust and drip proof.(designed to IEC 529 IP54)
• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
(unit can be hung from the neck for simplified measurement)
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
Measurement
Ranges		 Earth Resistance: 0~20Ω/0~200Ω/0~2000Ω
Earth Voltage [50,60Hz]: 0~200V AC
Accuracy Earth Resistance: ±2%rdg±0.1Ω (20Ωrange)
|±2%rdg±3dgt (200Ω/2000Ωrange)
Earth Voltage: ±1%rdg±4dgt
Overload Protection Earth Resistance: 280V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 300V AC for 1 minute
Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2, IEC 61557
Applicable Standards IEC 60529 IP54
Withstand Voltage 3700V AC for 1 minute
Power Source R6P (AA) (1.5V) × 6
Dimensions 105(L) × 158(W) × 70(D)mm
Weight 550g approx.
Accessories 7095A (Earth resistance test leads) × 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) × 1set
7127A (Simplified measurement probe) × 1set
R6P (AA) × 6
Neck strap
Instruction Manual
Carrying Case : 9084 (Soft case)
  : 9165 (Hard case)
Optional 7100A (Precision measurement cord set)
