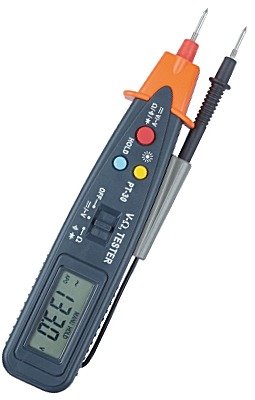

● Lightweight, compact, and easy to use. ● 4000 counts. ● Full automatic measurement, voltage measurement, resistor measurement. ● Data hold function. ● Auto off function. ● Continuity check. ● Diode measurement. ● Low battery indication. ● Pen light provided. ● Backlight LCD. ● 3V DC power supply.
SPECIFICATIONS
DC Voltage
Ranges
4V
40V
400V
600V
Resolution
1mV
10mV
100mV
1V
Accuracy
±(1%rdg+3dgt)
․Input impedance : 10MΩ
AC Voltage
Ranges
4V
40V
400V
600V
Resolution
1mV
10mV
100mV
1V
Accuracy
±(1.5%rdg+5dgt)
․Input impedance : 10MΩ
Resistance
Ranges
400Ω
4kΩ
40kΩ
400kΩ
4MΩ
40MΩ
Resolution
0.1Ω
1Ω
10Ω
100Ω
1kΩ
10kΩ
Accuracy
±(1.5%rdg+3dgt)
±(2.5%rdg+4dgt)
․Overload Protection 500V DC
Continuity Test
Ranges
400Ω
Audible threshold
Less than 25Ω
Diode Test : Test voltage approx. 0.3V to 2V
GENERAL
Low battery indication
"BATT" sign appears on the display when the battery voltage drops below accurate operating level.
